Master-Slave Architecture: Typically, a central host (master) initiates communication with peripheral devices (slaves). Slaves only respond when addressed by the master.
Packet-Based Communication: Data is exchanged in self-contained packets, each with a specific structure. This structure includes:
Header: Contains information like destination address, packet length, and source address.
Message: The actual data or command being sent or received.
Checksum: Used for error detection to ensure data integrity during transmission.
Asynchronous Serial: It uses an asynchronous serial interface (like RS-232), meaning data bits are transmitted one after another without a shared clock signal. Start and stop bits define the beginning and end of each byte.

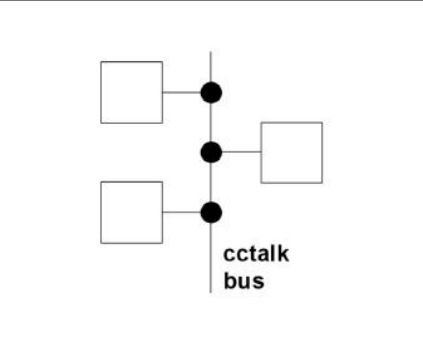

Multi-drop Capability: Multiple devices can be connected to a single serial bus, each with a unique address, allowing the host to communicate with them individually.
Standardized Commands: cctalk defines a wide range of standard commands for common operations such as reading device status, dispensing coins, accepting banknotes, setting parameters, and reporting errors. This standardization is crucial for interoperability.
Open Protocol: The specifications are publicly available, encouraging widespread adoption and development by various manufacturers.
Addressing: The master sends a command packet with the specific address of the slave device it wants to communicate with.
Command Execution: The addressed slave device receives the packet, processes the command, and performs the requested action (e.g., validate a coin, dispense a bill).
Response: The slave device then sends a response packet back to the master, indicating the success or failure of the command, or returning requested data.
Error Handling: The checksum helps detect corrupted packets. If a packet is corrupted, the receiving device can request a retransmission.
cctalk is widely adopted in:
Vending Machines: For coin mechs, bill acceptors, and change dispensers.
Amusement Machines: In arcade games, juke boxes, and other entertainment devices for payment and payout systems.
Gaming Machines: Slot machines and other gambling devices for secure transaction handling.
Parking Meters: For payment collection.
Kiosks: Self-service terminals that accept cash or provide change.
The ccTalk serial communication protocol serves as a vital bridge connecting various payment peripherals like CPI's MK2 and MK4 coin validators and numerous ICT banknote and coin modules to host systems in vending, gaming, and self-service industries. This open, packet-based protocol ensures seamless interoperability between devices from different manufacturers, providing reliable, standardized communication for functions like currency acceptance, dispensing, and real-time status updates, ultimately streamlining integration and enhancing the robustness of automated payment solutions.
